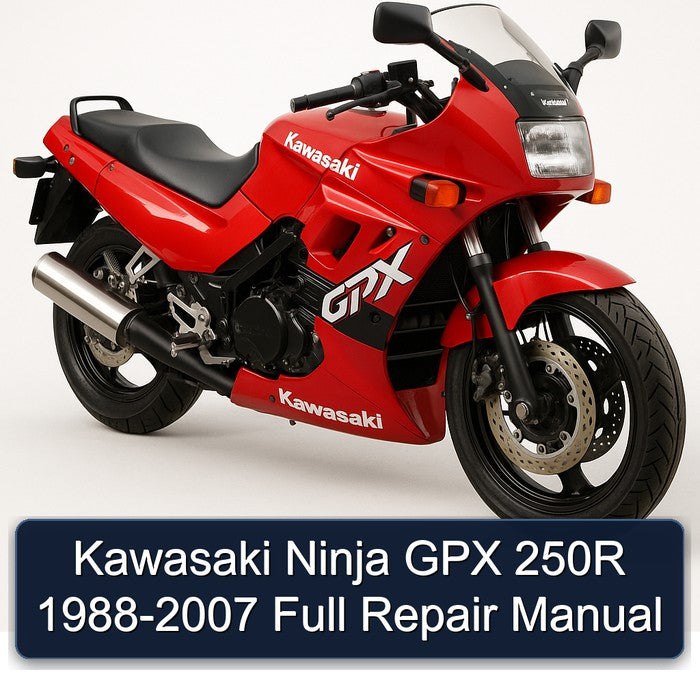

Kawasaki Ninja GPX 250R 1988-2007 Full Repair Manual

Precio habitual: $16.99
Precio de venta: $16.99
Precio habitual
Precio unitario: por

16 people are viewing this right now

Tipo: Motorcycle

Proveedor:

SKU: 140788

Etiquetas: 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 GPX Models Kawasaki Motorcycle Motorcycles Ninja GPX 250R

Variantes de producto

Descripción

The Ninja GPX 250R, produced from 1988 to 2007, is an entry-level sportbike renowned for its nimble handling, robust Japanese engineering, and affordability. Designed to appeal to new riders, commuters, and budget-conscious enthusiasts, this lightweight motorcycle offers a forgiving riding experience suitable for urban environments and learning the fundamentals of sport riding. Its parallel-twin engine, while modest in displacement, provides reliable performance, and the model has earned a reputation for dependability and low ownership costs throughout its production run. This comprehensive service manual serves as an essential guide for owners and technicians alike, detailing every aspect of the Ninja GPX 250R. It covers routine maintenance procedures, in-depth troubleshooting for common issues, and step-by-step repair instructions for all major systems, including the engine, transmission, chassis, brakes, and electrical components. The manual includes detailed technical specifications, torque values, clearances, and high-resolution diagrams, ensuring that maintenance and repair tasks are performed accurately and efficiently.

🏷️ Basic Information

Identification

Make:

Kawasaki

Model:

Ninja GPX 250R

Codes

Internal Model Codes:

EX250-F (1988-1999), EX250-J (2000-2007)

👋 Introduction

Market Position

Segment:

Entry-level sportbike / lightweight motorcycle.

Target Audience:

New riders, commuters, budget-conscious sportbike enthusiasts.

Competitive Analysis

Competitors:

Honda CBR250R, Suzuki GS500F (though larger displacement, often cross-shopped for price/performance), Yamaha FZR250 (where available).

Key Features

Handling:

Nimble and forgiving handling, suitable for urban riding and learning.

Reliability:

Known for robust Japanese engineering and dependability when properly maintained.

Affordability:

Attractive price point for initial purchase and ongoing ownership costs.

📋 Manual Details

Coverage Areas

Years Covered:

1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Page Count

Estimated Page Count:

~400-500 pages (typical for a comprehensive service manual of this era)

Manual Type

Type:

Full Repair Manual / Service Manual

Language

Language:

English

Format

Format:

📖 Manual Coverage

Systems Covered

Engine:

Complete engine overhaul, cylinder head, pistons, crankshaft, valve train, lubrication system, cooling system, fuel system (carburetors), ignition system.

Transmission:

Gearbox removal and installation, clutch operation, gear shifting mechanisms, lubrication.

Chassis:

Frame inspection and repair, front suspension (forks), rear suspension (shock absorber, linkage), steering system.

Brakes:

Front disc brake, rear drum brake (or disc on later models), hydraulic system, bleeding procedures, pad/shoe replacement.

Electrical:

Wiring diagrams, battery, starter motor, charging system (alternator/stator, rectifier/regulator), ignition coils, lighting, instrumentation, switches.

Bodywork:

Fairing removal and installation, seat, fuel tank, fenders, minor body panel repairs.

Procedures Included

Maintenance:

Routine service, oil and filter changes, air filter cleaning/replacement, spark plug replacement, chain adjustment, brake inspection, fluid checks and changes.

Troubleshooting:

Diagnostic charts for common performance issues, electrical faults, starting problems, and engine malfunctions.

Repair:

Step-by-step instructions for disassembly, reassembly, and repair of all major components.

Calibration:

Carburetor synchronization and tuning, ignition timing checks.

Technical Depth

Depth:

Comprehensive, covering basic maintenance to complete engine and component rebuilds. Includes detailed torque specifications, clearances, and tolerances.

📊 Manual Specifications

File Format

Searchability:

Searchable text within the PDF document for quick information retrieval.

Printability:

Printable pages allowing for physical reference during repairs.

Print Quality

Image Resolution:

High-resolution scans ensuring clarity of diagrams, schematics, and photographs.

Binding Type

Binding:

N/A (Digital PDF format)

Paper Type

Paper:

N/A (Digital PDF format)

⚙️ Engine Specifications

Primary Engine

Type:

Liquid-cooled, four-stroke, parallel-twin

Displacement:

248 cc (249 cc for later models)

Bore X Stroke:

55.0 x 52.4 mm

Valve Train:

DOHC, 8 valves (2 per cylinder)

Compression Ratio:

11.0:1

Performance

Horsepower:

Approximately 30-35 HP (varies slightly by year and emissions regulations)

Torque:

Approximately 17-19 lb-ft (varies slightly)

Fuel System

Carburetors:

Dual Keihin CVK32 carburetors (or similar)

Fuel Type:

Unleaded gasoline

Lubrication System

Oil Capacity:

Approximately 1.6-1.8 Liters (with filter change)

Oil Type Recommendation:

API SG or SH, JASO MA certified 10W-40 or 20W-50 motorcycle oil

Cooling System

Type:

Liquid-cooled

Coolant Capacity:

Approximately 1.2 Liters

Coolant Type:

Ethylene glycol-based coolant (50/50 mix with distilled water)

🔧 Transmission

Standard

Type:

6-speed constant mesh

Clutch:

Wet, multi-plate

Features

Final Drive:

Chain drive

Gear Ratios:

Specific ratios available in the manual for each gear.

Transmission Fluid

Type:

Engine oil (shared with lubrication system, meeting JASO MA specifications)

📐 Dimensions

Exterior

Overall Length:

Approximately 2000 mm (varies slightly by year)

Overall Width:

Approximately 700-750 mm (varies slightly by year)

Overall Height:

Approximately 1100-1150 mm (varies slightly by year)

Wheelbase:

Approximately 1350-1380 mm (varies slightly by year)

Weights

Dry Weight:

Approximately 140-148 kg (varies by year)

Wet Weight:

Approximately 155-165 kg (with fluids)

Fuel Tank Capacity:

Approximately 15-17 Liters (varies by year)

🛡️ Safety Features

Ratings

Crash Test Information:

Motorcycles of this era did not undergo standardized crash testing like automobiles. Safety is primarily derived from rider skill and protective gear.

Active Features

Braking System:

Front hydraulic disc brake, rear drum brake (later models may have rear disc).

Lighting:

Halogen headlamp, tail/brake lights, turn signals.

Passive Features

Frame Construction:

Steel diamond frame providing structural integrity.

Rider Ergonomics:

Sporty yet relatively comfortable riding position for its class.

💡 Technology Features

Infotainment

Features:

Basic analog instrumentation: speedometer, tachometer, odometer, trip meter, neutral indicator, high beam indicator, turn signal indicators.

Driver Assistance

Features:

None (This motorcycle predates advanced rider aids like ABS or traction control in its base configurations).

Connectivity

Features:

🔧 Maintenance

Service Intervals

Oil Change:

Every 2,000-3,000 miles or 6 months, whichever comes first.

Air Filter:

Inspect every 3,000 miles, clean or replace as needed. Replace typically every 6,000-12,000 miles.

Spark Plugs:

Replace every 6,000-8,000 miles. Check gap at 3,000 miles.

Chain Adjustment:

Check and adjust chain slack every 1,000 miles. Lubricate chain at same interval.

Coolant Flush:

Every 2 years or 12,000 miles.

Brake Fluid Flush:

Every 1-2 years.

Fluid Specifications

Engine Oil:

API SG/SH, JASO MA certified 10W-40 or 20W-50 motorcycle oil.

Brake Fluid:

DOT 3 or DOT 4.

Coolant:

50/50 mix of ethylene glycol based coolant and distilled water.

Known Issues

Carburetor Issues:

Can be prone to clogging if fuel is left standing for long periods. Synchronization may be required periodically.

Fuel Tap Vacuum Actuation:

The vacuum-operated fuel tap can fail, leading to fuel starvation or leakage. Replacement is usually straightforward.

Regulator Rectifier Failure:

Common on many motorcycles of this era, failure can lead to battery charging issues or overcharging.

Maintenance Tips

Winter Storage:

Proper fuel stabilization, battery care, and fogging of cylinders are crucial for long-term storage. Detailed instructions are in the manual.

📚 Vehicle History

Brand Heritage

Kawasaki Legacy:

Kawasaki Heavy Industries, Ltd. has a long-standing reputation for producing innovative and performance-oriented motorcycles.

Model Evolution

Generations:

The GPX250R (later often just Ninja 250) saw significant updates around the year 2000, including styling changes and minor engine tuning. The core platform remained largely consistent.

Styling Updates:

Early models featured a more angular, 80s-inspired sportbike look, while later models adopted a sleeker, more modern faired design. Changes included headlight design, fairing shape, and instrument cluster.

Production

Production Period:

1988-2007

Key Markets:

Globally popular, particularly in North America, Europe, and Asia.

🏆 Awards & Recognition

Recognitions

Awards Received:

While specific awards are not prominently documented, the Ninja 250R has consistently received praise for its value proposition, ease of use, and long-term reliability in the beginner motorcycle segment.

Ratings

Motorcycle Reviews:

Consistently rated highly by motorcycle publications for its beginner-friendliness, fuel efficiency, and low running costs.

Certifications

Emissions Compliance:

Meets applicable emissions standards for its respective model years and market of sale.
