It's 7 a.m., you turn the key, and nothing happens—or the radio dies, or the headlights flicker like a disco. Before you start yanking wires, know that a huge percentage of electrical gremlins trace back to the fuse box. This guide walks you through what fuses do, how to test them properly, and how to interpret common symptoms so you can fix the right thing the first time.
Photo: project Kei via wikimedia (BY-SA)

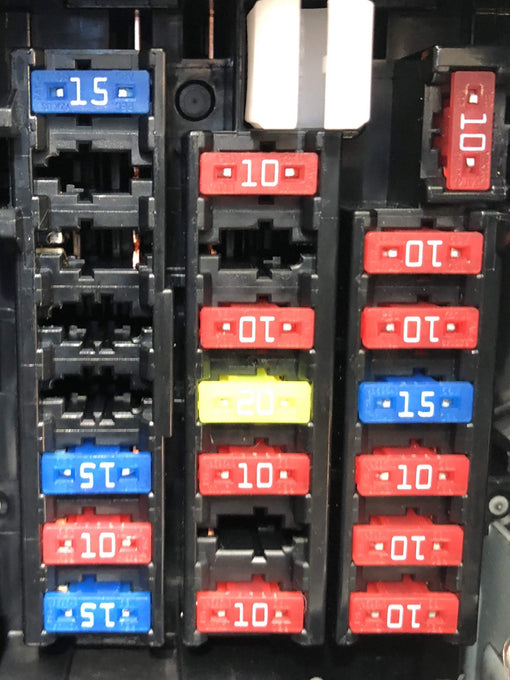

A fuse box—often called a fuse panel, junction block, or body control module (BCM) on newer vehicles—is the central distribution point for electrical power. It holds fuses, relays, and sometimes circuit breakers that protect individual circuits from overcurrent. When current exceeds a safe limit, the fuse element melts, breaking the circuit before wiring or components overheat and catch fire. This is why a blown fuse is a symptom, not the root cause; something downstream drew too much current or shorted to ground.
Fuses are rated in amperes (A). Common automotive ratings include 5A, 7.5A, 10A, 15A, 20A, 30A, and 40A. You'll find them in two main styles: blade fuses (ATO/ATC, mini, micro) and cartridge fuses (often for high-current circuits like glow plugs or ABS pumps). Relays are electromagnetic switches that allow a low-current circuit (e.g., the ignition switch) to control a high-current load (e.g., the fuel pump). Understanding this hierarchy helps you trace faults logically.
The fuse box layout is vehicle-specific. The cover or owner's manual often has a diagram, but it may be incomplete or misleading for circuits added by previous owners. A factory repair manual provides the exact fuse assignment, wire colors, and connector pinouts for your make, model, and year. Without that, you're guessing.
Photo: 70_musclecar_RT+6 via flickr (BY-SA)
Most vehicles have at least two fuse boxes: one under the hood (engine compartment) and one inside the cabin (under the dash, behind a kick panel, or in the glovebox). Higher-end vehicles may have a third in the trunk or rear cargo area. The under-hood box typically handles high-current circuits: cooling fans, ABS, headlights, and the alternator. The interior box handles lower-current accessories: radio, power windows, interior lights, and diagnostic ports.
To locate them, check the owner's manual first. If missing, look for a rectangular plastic cover with a diagram on the inside. Under the hood, it's often near the battery or strut tower. Inside, check the driver's side lower dash, passenger kick panel, or behind the glovebox. Some vehicles hide a fuse box behind the instrument cluster or under a seat. A factory manual shows exact locations with illustrations—much faster than hunting.
Once located, inspect the box for moisture, corrosion, or melted plastic. Water leaks from a clogged sunroof drain or windshield seal can cause intermittent electrical gremlins. Corroded terminals increase resistance, leading to voltage drops and weird symptoms. If you see green or white crust, clean with electrical contact cleaner and a small brush, then apply dielectric grease.
Photo: charles cars via flickr (BY)
You need a test light or a digital multimeter (DMM). A test light is quick for presence of power; a DMM gives you exact voltage. Set the DMM to DC volts, 20V range. With the circuit powered (ignition on or accessory), touch the black probe to a known good ground (bare metal on the chassis) and the red probe to the small metal test points on top of the fuse. You should see battery voltage (about 12.6V with engine off, 13.5–14.5V with engine running) on both sides of the fuse.
If you get voltage on one side but not the other, the fuse is blown. If you get no voltage on either side, the circuit isn't getting power—check the relay, ignition switch, or upstream wiring. If you get voltage on both sides but the component doesn't work, the fuse is good; the fault is downstream (wiring, connector, switch, or the component itself).
You can also remove the fuse and check continuity with the DMM in ohms mode. A good fuse reads near 0 ohms (continuity). A blown fuse reads infinite resistance (OL). Never replace a fuse with a higher rating or a piece of foil—that's how wiring fires start. If a fuse blows repeatedly, you have a short or overload. Disconnect the load and test again to isolate the fault.
Photo: kevin dooley via flickr (BY)
A dead circuit (e.g., radio, power windows, blower motor) often means a blown fuse. But if the fuse is good, check the relay and the ground connection for that circuit. Grounds are a common failure point, especially on older vehicles where corrosion builds up. A weak ground can cause dim lights, slow wipers, or erratic gauge readings.
Flickering or dim lights suggest high resistance or a loose connection. This could be a corroded fuse terminal, a failing relay, or a bad ground. If only one light flickers, check its connector and bulb socket. If all lights flicker, suspect the main ground or alternator. A parasitic draw (battery dies overnight) can be caused by a stuck relay, a faulty diode in the alternator, or a module that won't sleep. Testing draw requires a DMM with an amp clamp or a dedicated parasitic draw tester; pull fuses one at a time to isolate the circuit.
Intermittent no-starts, dead instrument clusters, or multiple unrelated symptoms often point to a bad body control module (BCM) or a communication bus fault (CAN bus). These are not fuse issues, but they can be misdiagnosed as such. A factory scan tool and wiring diagrams are essential here.
The fuse box cover diagram is a map: it shows fuse positions, amperage ratings, and which circuit each protects. However, it may use abbreviations (e.g., 'ACC' for accessory, 'IG' for ignition, 'B+' for battery positive). A factory repair manual decodes these and provides the full circuit schematic, including wire colors, splice locations, and connector views.
Relays are often arranged in a grid. The diagram shows which relay controls what. You can test a relay by swapping it with an identical one from a non-critical circuit (e.g., horn relay for fog light relay). If the symptom moves, the relay is bad. If not, the relay is likely good. You can also bench-test a relay with a 12V power supply and a multimeter: apply power to the coil terminals (usually 85 and 86) and check for continuity between the switch terminals (30 and 87).
Some relays have a diode or resistor across the coil to suppress voltage spikes. If that fails, it can cause the relay to stay engaged or burn out. Again, the manual gives exact pinouts and test values.
Always replace a blown fuse with the same amperage rating. If the correct fuse isn't available, use a lower rating temporarily—never higher. A higher-rated fuse won't protect the circuit and can cause a fire. Use a fuse puller or needle-nose pliers to remove blade fuses; don't pry with a screwdriver, which can damage the box.
If you're adding accessories (e.g., dash cam, off-road lights), don't just piggyback on an existing fuse. Use a dedicated fused circuit from the battery or a spare fuse slot rated for the load. Calculate the load: watts ÷ volts = amps. Add a 20–30% safety margin. For example, two 55W lights = 110W ÷ 12V ≈ 9.2A, so use a 15A fuse and 14-gauge wire. Check your manual for wire gauge recommendations.
When upgrading, ensure the alternator can handle the extra load. A stock 90A alternator may struggle with a high-power sound system and auxiliary lights. Upgrading the alternator or adding a second battery may be necessary. Keep in mind that modern vehicles with smart charging systems may require a scan tool to register a new battery or alternator.
If you've checked fuses, relays, and grounds and still have a problem, it's time for a wiring diagram. Generic online forums can help, but they often lack year-specific changes. A factory repair manual provides exact wire colors, pinouts, and diagnostic procedures. It also includes troubleshooting charts that walk you through step-by-step tests, saving hours of guesswork.
Electrical faults can be intimidating, but a systematic approach—test, isolate, verify—works. Start at the fuse box, confirm power and ground, then move downstream. With the right manual, you can diagnose anything from a simple blown fuse to a complex CAN bus issue. Remember: a fuse is a symptom; the cause is what you need to find.
